UNMATCHED SPEED
Print at speeds of up to 500 mm/sec with all linear servo motors, 1G acceleration, and 1 m/sec travel speed.
Designed for industrial production
Outstanding contribution to the medical industry

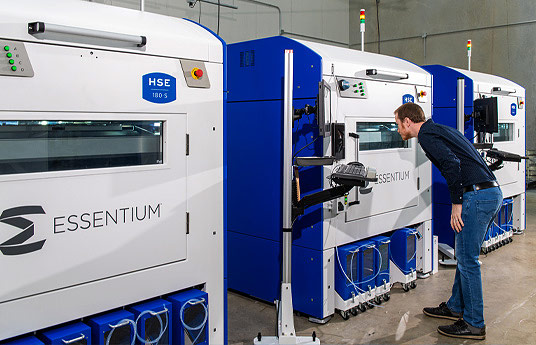

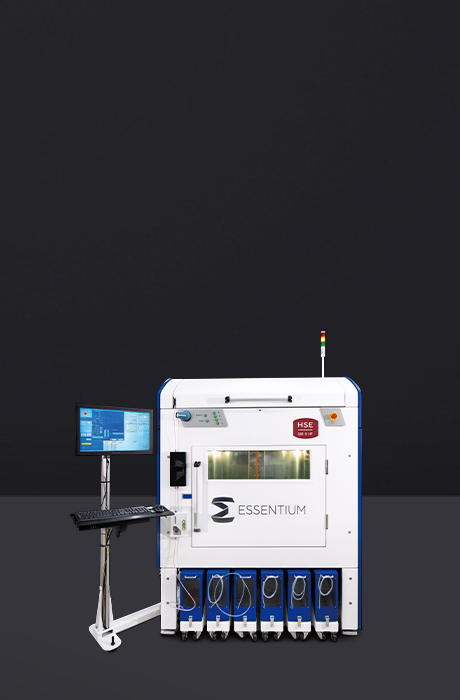

At five to 15x faster than the competition, Essentium's High Speed Extrusion (HSE) 180 3D Printing Platform is built to transform the factory floor. Using an X-Y stage with all linear servo motors, the HSE 180 3D Printer solves strength, speed, and scale issues that have historically limited additive manufacturing (AM). With Essentium you can finally harness the power of 3D printing at scale without sacrificing accuracy or speed.
Biomedical Device
Commercial Manufacturing
Footwear and Apparel
Architecture and Design
Prosthetic Sockets
Orthotic Devices
Low-Temp Jigs and Fixtures
Rapid Prototyping
Castings
Automotive and Transportation
Consumer Goods
Electronic Manufacturing Services
Low-Temp Jigs and Fixtures
Low-Pressure Mold Tooling
NPI and Bridge-to-Production
Manufacturing Aids
Aerospace and Defense
Semiconductor Device Manufacturing
Oil and Gas
High-Pressure Mold Tooling
High-Temp Jigs and Fixtures
Connectors
Functional Parts
Essentium HSE 3D printers and engineering-grade materials are designed for industrial production and can be rated for demanding manufacturing environments and applications.
Historically, extrusion 3D printing processes like FFF and FDM have been painstakingly slow, taking hours to produce a relatively simple geometry and days to produce complex designs. Essentium’s HSE technology eliminates wasted movement with linear servo motors, 1G acceleration, and 1 m/sec movement speed, allowing manufacturers to print parts five to 15x faster than conventional FFF and FDM printers.
Essentium’s HSE technology paired with its best and broadest materials offering, allows manufacturers to scale 3D printing like subtractive manufacturing and set the stage for Industry 4.0.

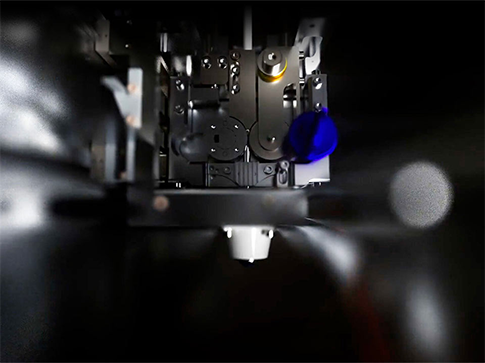

Printing high-performance materials with high-speed extrusion is only possible with a world-class nozzle. The Hozzle — Essentium’s heated nozzle — is an integrated heating and temperature sensing unit that achieves unmatched performance with temperatures reaching up to 550°C. Complete with a sapphire tip, the Hozzle heated nozzle gives manufacturers the ability to extrude the highest performance materials on the market.
| Print Heads | One | Nozzle Diameters | 0.4mm 0.8mm |
| Nozzle | Hozzle™ heated nozzle | Motion System Accuracy | XY < 30um, Z < 5um |
printing speed | up to 500mm/s | Movement System | Closed-loop linear servo motors |
| rinter Dimension | 1590 x 1350 x 2490mm | Net Weight | 900kg |
