Functional Series Photosensitive Resin

Suitable for applications such as functional prototypes, end parts, jigs and fixtures, molds, etc.

Functional series of photosensitive resin, toughness, rigidity, high strength of these types of resin materials have different mechanical properties orientation; high temperature resistant resin materials, widely used in electrical and electronic, business and other industries; high transparent resin materials suitable for printing transparent devices, such as car light shells; red wax suitable for printing handicrafts, mold species, with high surface quality and detail performance.

This series of resins is suitable for 3D printing functional prototypes, end parts, tooling fixtures, molds and other application directions.

Tough 20 Resin
Tough 20 Resin is a resin material with high toughness, high elongation at break and impact resistance. It is a better material for functional prototypes and can be used for functional verification applications with certain mechanical requirements.
Good toughness, can be repeatedly bent, twisted and twisted without breaking, not easy to break
Heat resistance without deformation, heat deflection temperature up to 65℃
Good detail expression, both precision and detail
Color: black, white
Download parameter table (TDS)
Rigid 20 Resin
Rigid 20 Resin is a high stiffness resin material with high stiffness and hardness and low creep, used in some functional prototype applications where stiffness is required. However, the impact resistance is poor.
Strong rigidity and hardness, not easy to bend
Low creep, no deformation in long-term storage
High precision, can print fine structure, good detail expression
Color: Black
Download parameter table (TDS)
Hi-Temp 160
Hi-Temp 160 resin is a high temperature resistant material that can reach a heat deflection temperature of 160°C without post heat curing and is suitable for functional applications requiring high temperature resistance. However, the material is relatively brittle and has low impact resistance.
Has high heat resistance
No post heat curing required to achieve 160 degree Celsius HDT
Color: Amber

Download parameter table (TDS)
High Strength Resin
High strength resin Pro 10 is stronger than Rigid 20, strong and less prone to bending, has higher stiffness and hardness, and lower creep, and is used in some functional prototype applications requiring high strength.
High strength with properties between high rigidity and high toughness
Low creep, no deformation in long-term storage
High impact resistance, not easy to break when dropped
Color: dark gray

Download parameter table (TDS)
Highly Transparent Resin Clear 10
Clear 10 Resin is a highly transparent resin material with excellent transparency, especially after fine sanding and varnishing.
High-speed molding to improve the time efficiency of product release
Promote iteration and increase the number of optimization upgrades
Good quantification, can complete rapid small batch capacity
Color: transparent

Download parameter table (TDS)
Red Wax Resin Red-HD
Red wax resin is a high-end model resin, excellent detail expression, can easily obtain fine material texture or fine and smooth surface, is a high-end handicraft, tide play mold material, the printed parts can be used directly to turn the mold or customize the final product.
High resolution for better characterization of design prototypes with excellent detail
High printing accuracy (up to ±30um), high hardness, better strength, easy to print, manufacture precise and robust parts, ideal for rapid prototyping and product development
Fine and smooth surface quality, easy to polish and color
Color: Brick red
Download parameter table (TDS)
ESD-T Antistatic Resin
ESD-T anti-static resin is mainly used for anti-static jigs, fixtures and customized trays in the production process of 3D printed electronic products.The surface resistance of this resin is that10⁶-10⁸ Ω excellent static dissipation performance, can well ensure that the electronic components from static damage, avoid dust accumulation. Good mechanical strength and impact resistance, so that the parts can withstand high intensity use.
Matte Black Texture
Surface resistance is10⁶-10⁸ Ω
Heat deflection temperature 60~65°C
Tensile strength 35MPa, notch impact 28J/m, elongation at break 13%, excellent overall mechanical properties
Color: Black
Download parameter table (TDS)

You May Be Interested In?

Basic Series

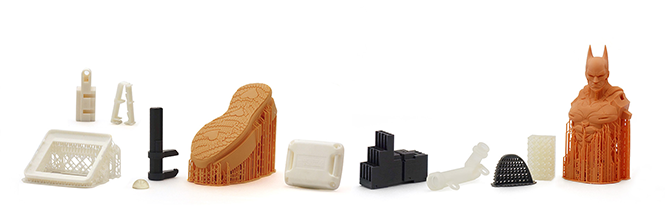

The Basic series of photosensitive resins includes three types of resins: standard resin, high-resolution resin, and high-speed resin. Each of these resins has its own characteristics. The high-resolution resin has excellent overall performance, both in terms of dimensional accuracy and surface quality, and has superb detailing power; the high-speed resin is suitable for fast and large-layer-thickness printing and for rapid verification.
More
Functional Series
Functional series of photosensitive resin, toughness, rigidity, high strength of these types of resin materials have different mechanical properties orientation; high temperature resistant resin materials, widely used in electrical and electronic, business and other industries; high transparent resin materials suitable for printing transparent devices, such as car light shells; red wax suitable for printing handicrafts, mold species, with high surface quality and detail performance.
More
Dental Series

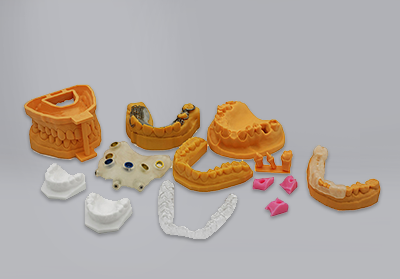

The Dental series of photosensitive resins includes eight types of photosensitive resins, including dental molds, surgical guides, orthodontic molds, denture gums, and memory molds, and each material has a medical record. The series of photosensitive resins have industry-leading physical and chemical properties to meet the needs of dental applications, and are easy to print, clean and dry.
