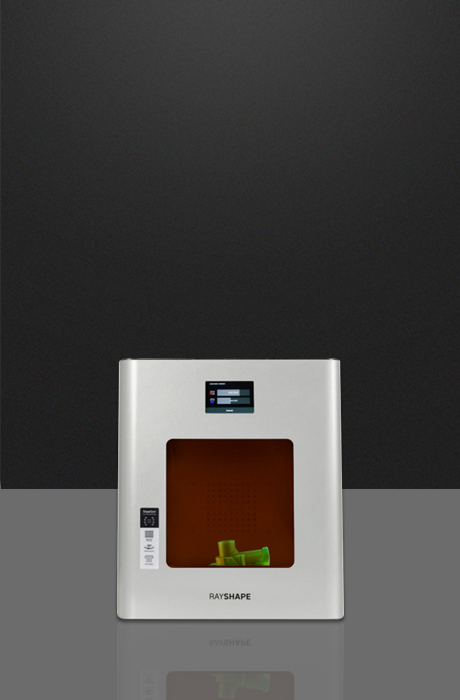

ShapeCure Curing and Drying All-in-One Machine_Shanghai Gyrotec Technologies Co., Ltd


Compatible with Rayshape brand full range of supplies, curing parameters are fully built-in

Supports the full range of ShapeMaterials consumables, including: Basic Series, Functional Series, and Dental Series. Simply click on the name of the material on the touch screen to start curing. Of course, you can also quickly customize the curing parameters.

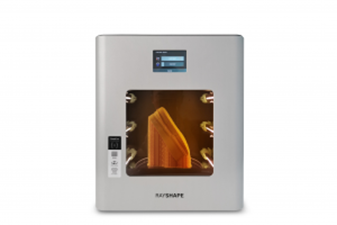

Full mirror reflection + 360° rotation curing

The ShapeCure body has five internal surfaces made of mirror stainless steel for high reflection efficiency. In addition, the 360° rotating chassis can ensure that all angles of the parts are fully exposed to light and curing, enhancing the uniformity and efficiency of curing.

High power of light curing

ShapeCure's complete curing power of 72W allows for higher curing efficiency and improved scratch resistance of the part surface in the same amount of time.

Hot air drying, in one go

With 100W of hot air drying power, the ShapeCure ensures that when you remove the part, it is not only cured, but also dried.

Proven quality

Rayshape Shape 1 series 3D printers have been proven by many industrial customers and have withstood the test of the market with very reliable and durable features
High reliability of DLP technology

Rayshape Shape 1 series DLP optical machine with Texas Instruments DMD chip, up to 30,000 hours of service life
Excellent ease of use

The ease of use of the Shape 1 series is reflected in the calibration-free molding platform and resin tank, the well-thought-out anti-distortion design, and the intelligent software functions.

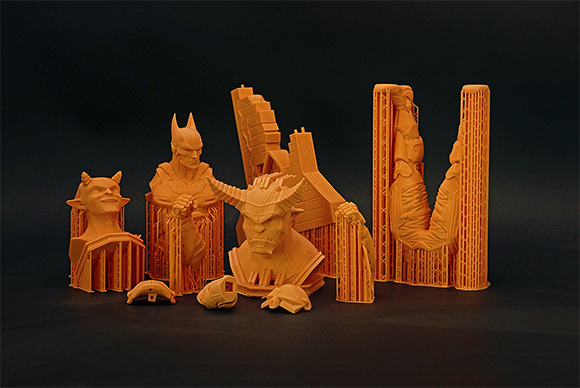

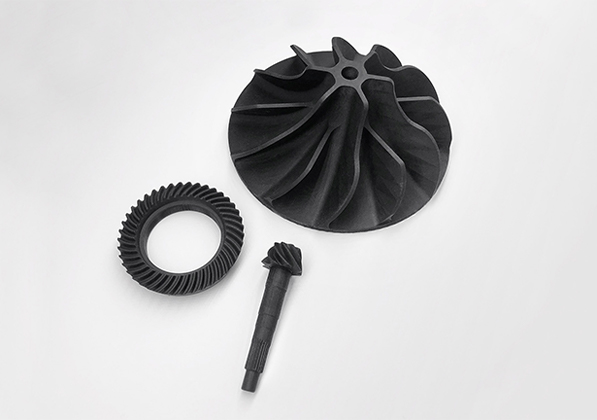

Highly accurate output to precisely reproduce design intent

High dimensional accuracy and high detail resolution ensure that every print moves your business forward smoothly

高精度输出，精确还原设计意图

Whatever the use, you will want a 3D printer that can accurately reproduce your design intent and even faithfully output flaws in your design.

In this way, you can smoothly move your work in the right direction. And that's exactly how 3D printing technology should behave.

The Shape1 series is just that. With industry-leading accuracy advantages, tight dimensional tolerances, and the ability to output intricate, fine detail, the Shape1 series is a high-performance desktop 3D printer that truly has the limits of powerful applications.

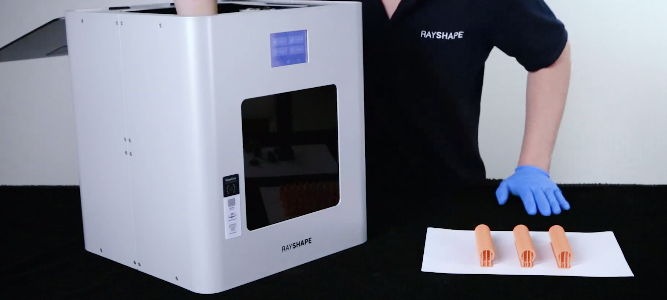

Efficiency reinvents value

Rayshape's innovative combination of HSP high-speed peel-off technology and DLP digital surface projection technology allows the Shape 1 Series to achieve print speeds of up to 50mm height per hour*, meaning that multiple 10cm tall parts can be printed simultaneously in a single pass in as little as 2 hours.

Bigger size, more possibilities

Meet the needs of diverse parts throughout the product lifecycle, from design and development to assembly and quality control

更大尺寸，更多可能

Larger molding sizes mean greater application flexibility. In addition to printing large parts, you can also print multiple small parts in a single run for greater efficiency.

From product appearance prototypes, to functional prototypes, to tooling fixtures, parts vary in size and you need a larger molding size to meet the needs of different departments and applications across the product lifecycle.

Easy to use software, quick to get started

Intelligent model analysis technology for a highly automated user experience

Auto-rotation and typesetting

With ShapeWare, you can optimize part angles with one click and rotate models to better print angles with one click for higher print efficiency and print quality.
Automatic addition of support structures

ShapeWare has high-precision, intelligent support functions, the fine structure of the complex model can also be effectively supported, and the support quality is high, the support structure is easy to remove.

Easy to use, safe and secure

Years of technology accumulation to create a perfect product design

Print Bin Thermostat Control

The print bin has a built-in air circulation heating device to ensure that the printing process is not affected by the ambient temperature, so you can get stable and consistent print quality and print success rate all year round.
Print bin air purification

The print bin has a built-in HEPA air filter, which keeps the air circulating and filtering during the printing process, maintaining the air quality of the office environment for a long time and reducing the impact of photosensitive resin on the environment.
Safety door design

To reduce the risk of use, Shape 1 series 3D printers, if the bin door is opened during the printing process, the printing process will be immediately suspended.

Specifications
Consumables
Hardware
Software
Size Weight

Curing size	Diameter 200 mm × Height 300 mm
Curing light wavelength	405 nm Array LEDs Replaceable Lamps
Curing electric power	72W
Curing mode	Multi-light source 360° surround internal reflection
Compatible with 3D printers	Shape 1 series, Shape 1+ series, Shape 1+Dental, P200 series, P400 series
Hot air power	248W
Work Mode	Hot air convection drying

Photosensitive resins

ShapeMaterials full range of consumables

Including: Basic Series/Function Series/Dental Series

Main control chip	STM 32 ARM chip
LCD screen	3.5-inch color capacitive touch LCD screen
LCD resolution	480 x 320 PX
Data Interface	USB cable
Input	100~120 VAC，50/60Hz 220~240 VAC，50/60Hz (depending on the country/region of sale)
Whole machine power	320 W

Consumables parameters	Built-in full range of ShapeMaterials consumables curing parameters and support for custom curing parameters
Firmware Upgrade	Firmware upgradeable via USB cable
Menu Language	English

Equipment size	340 × 340 × 400 mm
Equipment net weight	12 kg
Package Size	420 × 450 × 500 mm
Packing weight	14kg
